Nighthawk Services  has truly extrordainary technology on their hands. Their attention to detail and powerful machinery helped us wrap up our project on time. Nighthawk Services is a godsend!

We hired Nighthawk Services to handle our fluids and testing. They really impressed us with their speed, techonology, and professionalism. Highly recommend!

Nighthawk Services is the best option for solids control. Their employees are very professional and work quickly. Nighthawk Serviecs will be our testing and solids control experts going forward!

I highly recommend Nighthawk Services. They completed our project efficiently and under budget! The Sandhawk technology is remarkable.

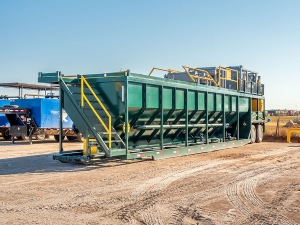

Sandhawk Solids Control System

The Sandhawk is a self-cleaning, solids control system that allows the cleanest working fluid to be recycled. This system has proven to save operators a significant amount of money and time by eliminating cleaning and disposal fees that the traditional systems accrue. The Sandhawk does not require a SuperVac or cleaning crew therefore there are no delays.

Areas of Operation:

• West Texas
• East Texas
• South Texas
• Oklahoma
• New Mexico

The following is the flow process of the fluid as it is returned from the well and is recycled.

1. Well returns flow back into gas busters located at the center of the tank.
2. Built in baffles are in place below the gas busters and the settling process begins.
3. Once the solids reach the bottom of the tank, the contents are carried toward the rear of the unit towards the pump and shaker system by the auger that lays across the bottom of the tank. The “V” shape of the tank prevents any solids from getting left behind.
4. The auger feeds all solids to the “Desander Pump” and the contents are pumped over the top of the shaker at the rear of the tank.
5. Hydrocyclones are in place above the Shaker to start the separation process. Solids are dropped over the top of the shaker and excess fluid is pushed through a return line that leads right back to the gas busters at the center of the tank. Any solids that may have been returned to the tank will continue to go through the cycle until they are removed.
6. Once the solids are dropped over the top of the shaker, the contents are carried toward the rear of the tank at an incline and are held back by the “Dam” which allows the drying process to take place. When the weight of the solids overcomes the resistance of the “Dam”, then the solids will be dumped from the high point of the shaker onto a chute and into a tank or pit of your choice.

The cleanest fluid remains at the very front of the tank where the return rate is measured, and a smaller pump is utilized to catch samples of the working fluid and to clean shaker screens. The Sandhawk is equipped with an 8” overflow system for equalizing into other working tanks and a 4” overflow system for oil skimming. These overflows are adjustable but are meant to be set at a high working level in order to use the cleanest fluid which is the furthest away from any solids. Closed Loop gas separators and flare systems are available upon request.

Nighthawk Completion Services Torque & Test team has completed projects for the leading operators in the oil & gas industry. Our group provides exceptional experience, giving us the knowledge to coplet your project safely and efficiently.

• 10-15K Hydrostatic Pressure Testing Pumpsiently
• Hydraulic Torque Wrenches



Areas of Operation:

• West Texas
• East Texas
• South Texas
• Oklahoma
• New Mexico

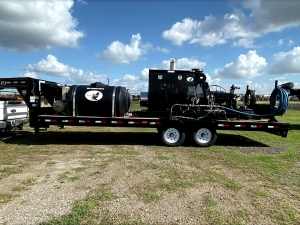

HIGH PRESSURE TEST UNITS

HYDRAULIC WRENCHES

Nighthawk Completion Services mixing plants are designed to provide our customers with the premium and properly-mixed chemicals to meet their demands for cost efficiency and consistent chemical delivery.

Areas of Operation:

• West Texas
• East Texas
• South Texas
• Oklahoma
• New Mexico

**(plus symbol dropdown like petrostar)**

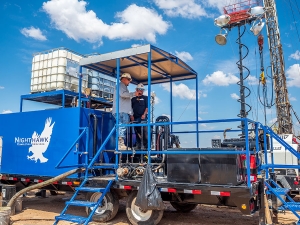

SMART UNIT MIXING PLANT

The Smart Unit Mixing Plant has fully automatic controls, touch screen adjustments, and data collection systems. The Smart Unit is integral to increasing productivity and margins. The automated system aboard the unit can be operated by one person or remotely by the pump operator.

Up to 4 different chemicals can be mixed to the drilling fluid at the same time. Precise chemical mix ratios from .05 gallons to 5 gallons per 10 BBL controlled at the touch of a button, from Unit Phone, or Laptop. User friendly graphical touch screen displays pictures instead of text to control fluid hydration. Status color changes of systems can be seen on screen making it easy to visualize and understand exactly what is going on with the unit all times.

Data Collection System stores all data by the well API#. All data including changes to operator set points, sweep gel, slugs, fluid rates, chemical rates, well pressures, flow back pressures, viscosity, pH, and many other values are stored in an onboard SQL Server and will be made available to our customers via automated and fully customizable reports.

CONVENTIONAL MIXING PLANT

CHEMICALS

DIVERTER UNITS

FILTRATION UNITS
